Spectra® Fiber

Spectra® Ultra High Molecular Weight Polyethylene (UHMWPE) fiber offers an incredible strength-to-weight ratio, abrasion & UV resistance, and moisture repellency.  It's the perfect choice for outdoor and demanding industrial applications.  Our Spectra® premium fibers outperform most other UHMWPE fibers on the market today

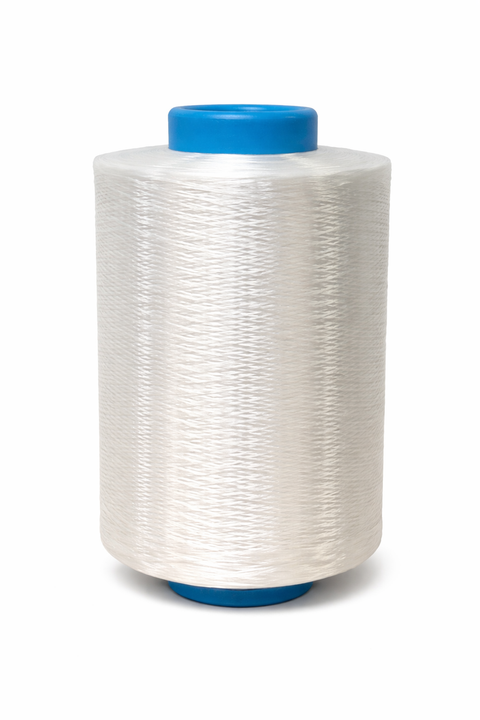

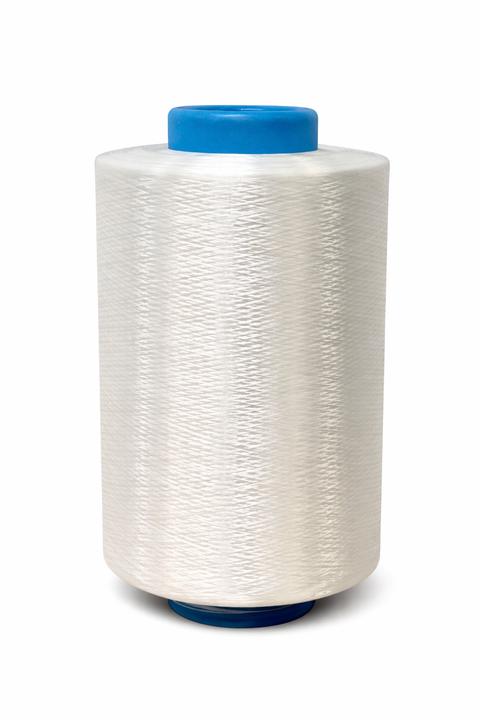

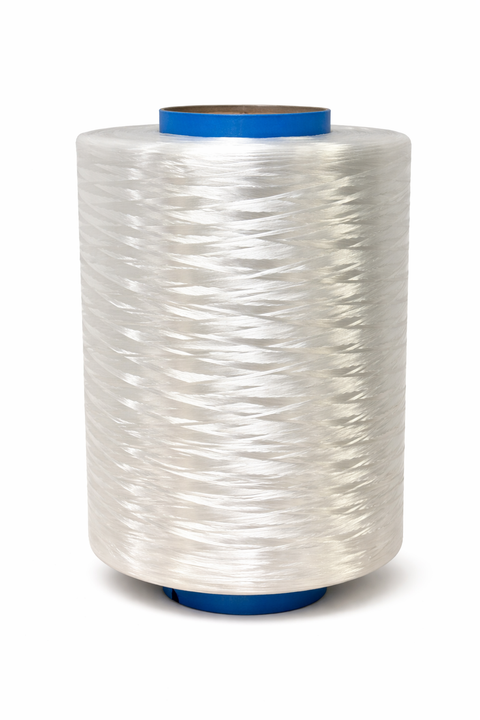

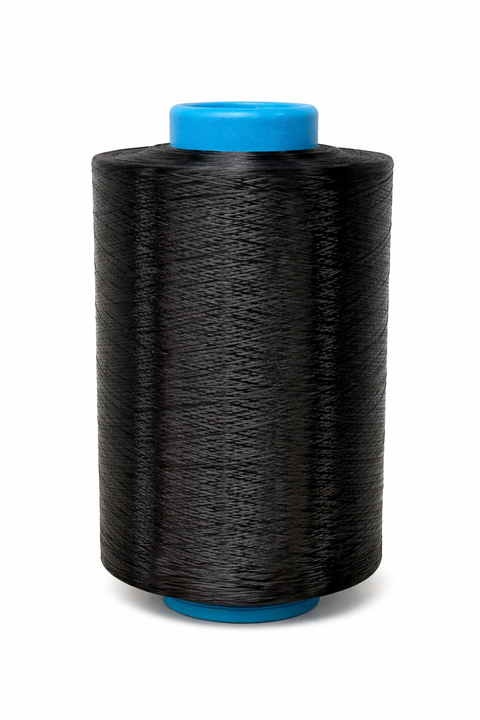

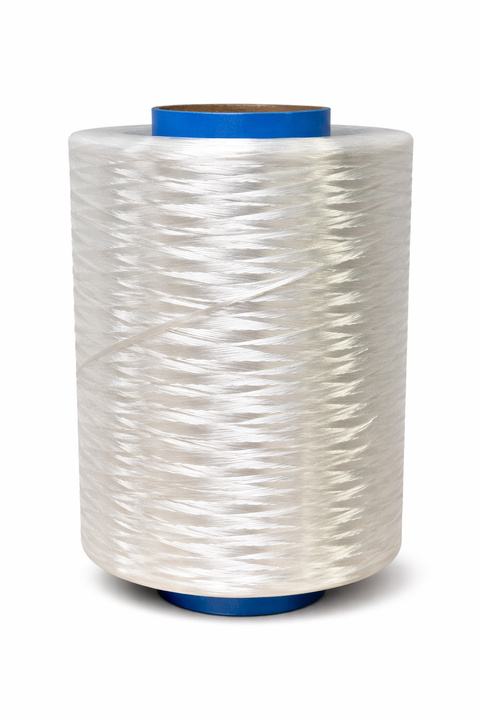

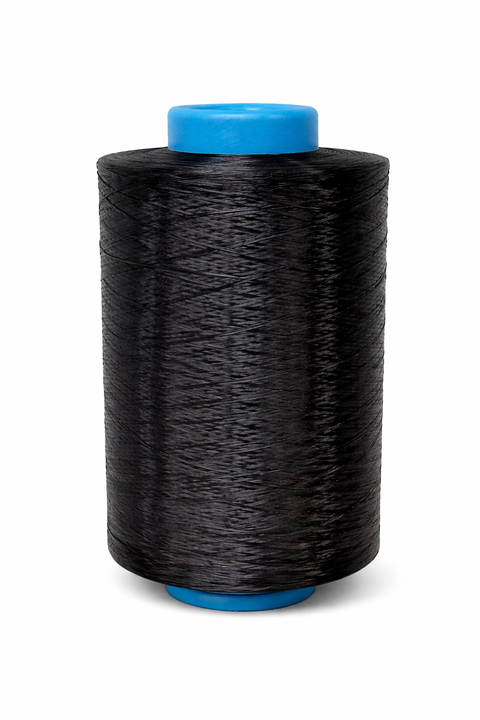

Spectra® fibers from Rocket-Fibers are supplied as a continuous multifilament yarn, precision-wound on cardboard textile tubes for easy handling and seamless processing.  Our premium Spectra® is offered in natural and black colors.  Contact us today if you have additional color needs.

Fibers are available in both sample and factory spool sizes. Bulk quantities are offered for commercial use, with additional fiber processing services such as twisting, braiding, and custom coating available upon request. Each order includes a batch-specific Certificate of Analysis, verifying authenticity and full traceability of your fiber purchase.

Click to View Technical Specifications Table

Denier (g/9000m)
Spool Size (lb)
Color

$76.97

Request Fiber Services

Wholesale Distribution




Partager

Facebook Twitter Pinterest

About This Item

Spectra® Technical Specifications

Denier
200
200
Black
400
400
Black
800
1600
1600
Black
Tenacity
(g/den)		38.433.7 37.3 32.8 35.0 37.2 35.0
Break Strength
(lbf)		17.715.033.329.861.7132.9123.5
Diameter*
(mm, inch)		0.190mm (0.0075") 0.190mm (0.0075")
 0.268mm (0.0106") 0.268mm (0.0106")
 0.380mm
(0.0149")		 0.537mm (0.0211") 0.537mm (0.0211")
Chord Modulus
(g/den)		1280123712131208110011671086
Elongation
(%) 		 ~3.7% ~3.5% ~3.5% ~3.5% ~3.5% ~3.5% ~3.5%
Finish Oil Content
(%)		1.31.31.3
1.3
1.3
1.3
N/A
Filament Count8080160160240480320
Filament Size
(dpf)		2.52.52.52.53.33.35.0
Yield
(lb/1000ft)		0.0150.0150.0300.0300.0600.1200.120
Yield
(ft/lb)		66,66066,66033,33033,33016,6608,3308,330

*Calculated diameter

Spectra® Packaging Details

Product Spool Size Quantity Tube Dimensions
Tube Sizes
All Sample Sizes Sample Spool 0.25 lb Standard Tube Dimensions
3.7" x 8.5"
200 - 400 Denier Factory Spool
2.0 lb Standard Tube Dimensions
3.7" x 8.5"
800+ Denier Factory Spool  5.0 lb Standard Tube Dimensions
3.7" x 8.5"

Spectra® Physical Properties Guide

Spectra® premium UHMWPE fibers possess exceptional mechanical and physical properties. They boast an extraordinarily high strength-to-weight ratio, making it one of the strongest synthetic fibers available. Spectra® fiber exhibits excellent abrasion resistance and since it is hydrophilic, has nearly zero moisture absorption.  Keep in mind that Spectra® fibers do creep more under constant and continual load compared to other high-performance fibers, but their other desirable properties make them a top choice for the most challenging of applications.

Spectra® Resistance Guide

Spectra® UHMWPE premium fibers offer high resistance to corrosive substances, such as most acids, alkalis, and organic solvents, making them valuable in industrial settings where chemical exposure is commonplace. However, Spectra® fibers are not without their shortcomings. They exhibit limited thermal stability, which reduces their performance and longevity at elevated temperatures. While their melting point is approximately 135-147°C, they begin to lose their properties around 100°C. Moreover, Spectra® fibers possess low flame resistance. In a fire or high-heat scenario, they readily melt and burn.

This fiber exhibits poor flame resistance and will melt at 135°C. It is not advisable to use in any application where an open flame is present.

This fiber exhibits poor heat resistance and will melt at 140°C. It is not advisable to use in any application where high heat is present.

Acid: Highly resistant to most acids, maintaining their mechanical properties
Alkali: Withstand exposure to most alkalis with minimal degradation
Organic Solvent: Generally compatible with a variety of organic solvents

Continuous Operating Temperature Range (°C): -150 to 70
Short Term Exposure (°C): 100
Melting Temp (°C):140 - 152


Spectra® Performance Highlights

  • High Strength: UHMWPE fibers possess high tensile strength, making them one of the strongest fibers available, even stronger than steel.
  • Very Lightweight: UHMWPE fibers are extremely lightweight, and even float in water.
  • High modulus: UHMWPE fibers have a high modulus of elasticity, providing excellent stiffness and dimensional stability.
  • Abrasion resistance: These fibers offer exceptional resistance to abrasion, ensuring durability and longevity in demanding applications.
  • Chemical resistance: UHMWPE fibers exhibit excellent resistance to chemicals, including acids and solvents, making them suitable for corrosive environments.
  • Low moisture absorption: UHMWPE fibers have low moisture absorption, allowing them to maintain their properties even in wet conditions.
  • UV resistance: UHMWPE fibers have inherent resistance to ultraviolet (UV) radiation, making them suitable for outdoor applications without significant degradation over time.
  • Good fatigue resistance: UHMWPE fibers show excellent resistance to fatigue, maintaining their performance under repeated loading cycles.

Spectra® Pocket Properties Table

The table below represents the nominal mechanical properties of Spectra® premium fibers for industrial applications

Property Unit Of Measure Standard
Tenacity g/d 32.0 - 39.0
Tensile Modulus g/d 1000 - 1300
Specific Gravity ratio 0.97
Avg. Elongation % 3.4
Moisture Regain1 % < 0.1
Melt Point °C 135-147
Decomposition Temp °C Melts
Creep2 % 1.7-5.0
Shrinkage3 % Melts

1 Equilibrium moisture regain @ 55% RH

2 Creep @ 40%-58% ultimate tensile strength

3 Shrinkage in dry air @ 177°C for 30 minutes
