Fiber creep is the time-dependent elongation of a material under constant load. While many fibers exhibit high initial strength, creep can lead to long-term deformation, loss of tension, and eventual system failure if not properly accounted for. Correct fiber and textile selection play a vital role in avoiding unwanted creep in your product or process.
Fiber or textile creep is one of the most important — and often misunderstood — behaviors in high-performance materials. It refers to the gradual, permanent elongation of a fiber when subjected to a constant load over time.
Unlike immediate elastic stretch, creep occurs slowly and can continue for hours, days, or even years depending on the material, load, and environmental conditions.
What Is Fiber Creep?

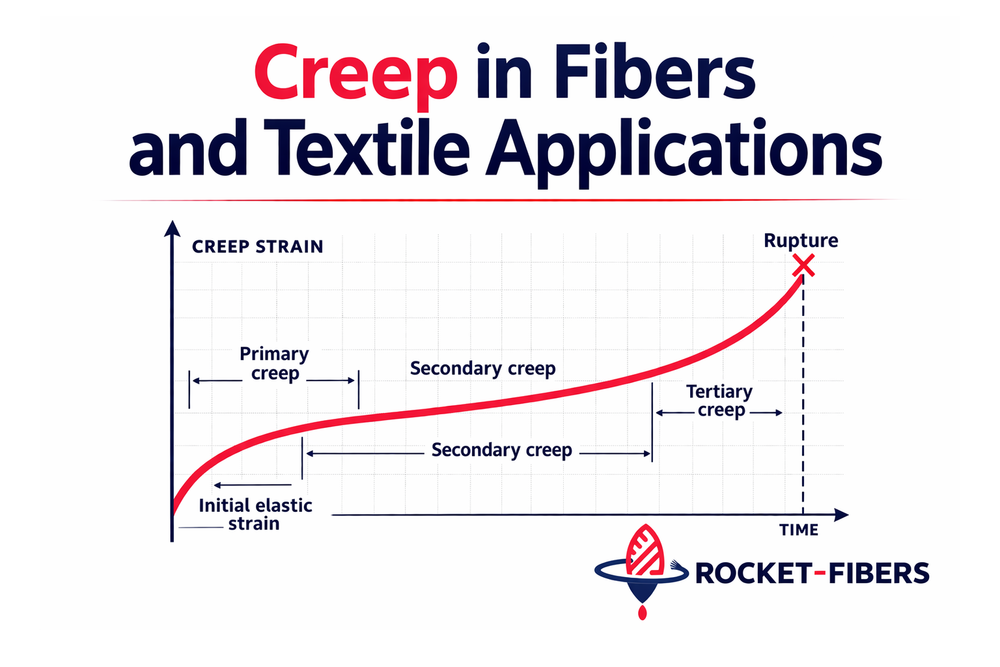

Creep is defined as the time-dependent deformation of a material under constant stress. In fibers, this results in gradual elongation that does not fully recover when the load is removed.
This behavior is driven by molecular chain movement within the polymer structure. Over time, the internal structure of the fiber rearranges, allowing it to extend under sustained load.
Why Creep Matters In Real Applications
Creep is critical in applications where fibers are subjected to continuous or long-term loading. Even small amounts of creep can lead to significant performance issues over time.
- Loss Of Tension: Systems relying on tension can become loose or ineffective
- Dimensional Instability: Length changes can impact system geometry
- Reduced Performance: Load distribution may shift over time
- Premature Failure: Long-term deformation can lead to material fatigue or breakage
This is especially important in load-bearing assemblies, tensioned systems, aerospace components, and technical textile applications where dimensional stability is critical.
Creep Behavior By Fiber Type
Different fiber types exhibit significantly different creep behavior depending on their molecular structure. A fiber may have excellent tensile strength while still performing poorly in long-term static load applications.
| Fiber Type | Creep Resistance | Notes |
|---|---|---|
| Para-Aramid (Kevlar®) | Excellent | Very low creep and strong dimensional stability under load |
| LCP (Vectran™) | Excellent | Minimal creep, ideal for long-term tension applications |
| Polyester | Moderate | Relatively stable but will elongate gradually over time |
| UHMWPE (Dyneema® / Spectra®) | Poor | High strength-to-weight ratio but significant creep under sustained load, especially at elevated temperatures |
UHMWPE fibers are extremely strong and lightweight, but their creep behavior can make them a poor choice for applications requiring long-term static load stability. This is one of the most important tradeoffs engineers must understand when comparing high-performance fiber types.
Factors That Affect Creep
Creep performance is influenced by more than just fiber chemistry. Several factors can accelerate or reduce time-dependent elongation.
- Load Level: Higher sustained loads increase creep rate
- Temperature: Elevated temperatures accelerate molecular movement and deformation
- Time: Creep increases with duration under load
- Fiber Type: Polymer structure strongly affects creep resistance
- Construction: Twisting, braiding, and assembly design can influence overall behavior
When Creep Becomes Critical
Creep must be considered any time a fiber is expected to hold a load over an extended period. In many cases, the issue is not immediate failure, but gradual performance loss.
- Load-Bearing Cords And Assemblies
- Aerospace And Safety Systems
- Structural Textile Components
- Tensioned Industrial Systems
- Applications Requiring Precise Dimensional Stability
For these applications, selecting a low-creep fiber can be just as important as selecting a high-strength fiber.
Design Considerations
Engineers and product designers should evaluate creep early in the material selection process, especially for static load applications.
- Select Low-Creep Fibers for long-term load-bearing systems
- Reduce Working Load relative to ultimate break strength
- Account For Temperature Exposure in the application environment
- Validate Through Long-Term Testing whenever possible
- Do Not Assume High Strength Means Low Creep
A material can offer outstanding initial tensile performance and still perform poorly over time if creep is not properly accounted for in the design.
