Fibra de carbono
Un 75 % más ligeros y 10 veces más resistentes que el acero, los cables de fibra de carbono de Rocket-Fibers son la opción ideal para sus necesidades de fibra de carbono. Utilizados en diversos sectores como el aeroespacial, los compuestos, los artículos deportivos, la automoción y muchos más, el uso de fibra de carbono como Tansome® en su producto o diseño elevará el rendimiento al siguiente nivel.

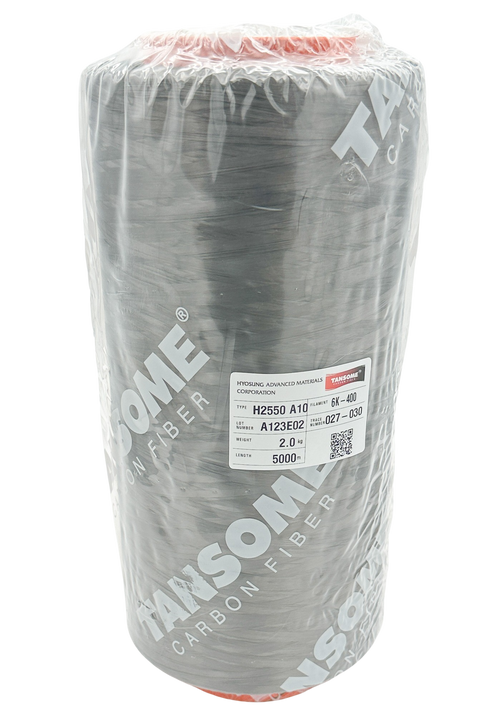

La fibra de carbono de Rocket-Fibers se suministra en una configuración multifilamento continua y se enrolla con precisión en un tubo de cartón para facilitar su manejo y procesamiento continuo. También disponemos de bobinas de fábrica de tamaño completo y volúmenes mayores. Además, cada pedido incluye una certificación de producto que garantiza la autenticidad de la fibra adquirida.
About This Item
Carbon Fiber
| PROPERTY | 1K (600D) | 3K (1800D)
|
6K (3600D)
|
12K (7200D)
|
|---|---|---|---|---|
| Tensile Strength
|
4.19 GPa | 4.27 GPa | 5.94 GPa | 5.89 GPa |
| Tensile Modulus | 252 GPa | 256 GPa | 250 GPa | 245 GPa |
| Break Strength | 7-10 kg | 20-25 kg | 45-50 kg | 95-100 kg |
| Diameter | 0.242mm (0.0095") | 0.419mm (0.0165") | 0.593mm (0.233") | 0.838mm (0.0330") |
| Elongation | 1.6% | 1.6% | 2.4% | 2.3% |
| Yield (g/km) | 67 | 202 | 402 | 799 |
| Spool Size | 5000m | 5000m | 2.0 kg | 6.0 kg |
Carbon Fiber Physical Properties
Carbon Fiber tow exhibits remarkable physical and mechanical properties that make it highly desirable in various applications. With its exceptional strength, carbon fiber tow offers outstanding tensile strength and modulus, ensuring superior structural integrity and load-bearing capacity. Furthermore, its low elongation and minimal creep characteristics make it resistant to deformation under prolonged stress, contributing to its long-term stability and reliability. These properties make carbon fiber tow a preferred choice for industries requiring high-performance materials.
Carbon Fiber Resistance Guide
Carbon Fiber boasts a range of exceptional properties that contribute to its widespread use across industries. Its excellent UV resistance allows it to maintain its strength and integrity even under prolonged exposure to sunlight. Furthermore, carbon fiber exhibits a wide temperature range, remaining stable and functional in extreme hot and cold environments. Additionally, its exceptional chemical resistance and compatibility make it resistant to corrosion and degradation, enabling its use in harsh chemical environments without compromising its performance or longevity.
This fiber exhibits poor flame resistance. It is not advisable to use in any application where an open flame is present.
Acid: Excellent resistant to most acids
Alkali: Good resistance to most alkalis
Organic Solvent: Generally compatible with a variety of organic solvents
Continuous Operating Temperature Range (°C): -50 to 300
Short Term Exposure (°C): Up to 500
Degradation Temperature (°C): 700
Carbon Fiber Property Guide
| Property | Unit of Measure | Standard |
|---|---|---|
| Tensile Strength
|
MPa
|
3530
|
| Tensile Modulus | GPa
|
230
|
| Specific Gravity | ratio | 1.80 |
| Avg. Elongation | % | 1.6 |
| Moisture Regain1 | % | 0.1 - 0.2 |
| Melt Point | °C | N/A |
| Decomp. Temp | °C | 380 |
| Fiber Density | g/km | 1.8 |
| Creep2 | % | N/A |
| Shrinkage3 | % | 0.40 |
1 Equilibrium moisture regrain @ 55% RH
2 Creep @ 40%-58% ultimate tensile strength
3 Shrinkage in dry air @ 177°C for 30 minutes
Carbon Fiber Performance Properties
High Strength: Carbon Fiber is known for its exceptional strength, making it ideal for applications where durability and load-bearing capacity are crucial.
High Modulus: With a high modulus of elasticity, Carbon Fiber exhibits excellent stiffness and rigidity, ensuring structural integrity in various applications.
Thermal Stability: Carbon Fiber maintains its performance and structural integrity at extreme temperatures, making it suitable for both high-temperature and cryogenic environments.
Chemical Resistance: This Carbon Fiber product resists a wide range of chemicals, making it highly resistant to corrosion and degradation in chemically aggressive environments.
Electrical Conductivity: Carbon Fiber offers excellent electrical conductivity, making it valuable in applications requiring electrical or thermal conductivity properties.
UV Resistance: It is UV-resistant, which means it can withstand prolonged exposure to sunlight without degradation, making it suitable for outdoor and aerospace applications.
Vibration Reduction: Carbon Fiber helps reduce vibrations and dampen oscillations, making it an excellent choice for products requiring vibration control or shock absorption.
Additional Information
| Tube Size (Cardboard)
|
Quantity
|
|---|---|
| 3.7" x 8.5" |
500 FT, 5000 FT
|
| 3.0" x 11.0"
|

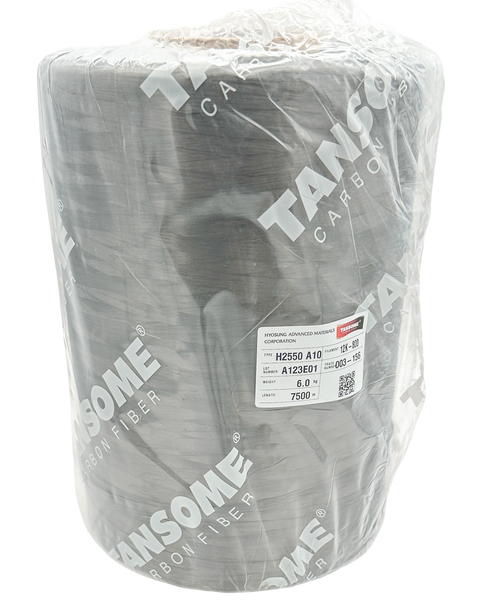

Factory Full Spool
|
