The D:d ratio is a critical design parameter that determines how ropes, cords, and braided lines perform when routed over hardware. It directly impacts strength retention, fatigue life, and long-term durability in real-world applications.
In high-performance fiber systems, failure rarely occurs under static conditions alone. Instead, damage is often introduced when ropes or cords are bent, wrapped, or tensioned over pulleys, sheaves, pins, or guides. The D:d ratio provides engineers with a simple but powerful way to evaluate how severe that bending condition is.
Whether you are designing Braided Lines For Maximum Performance, twisted cords, or load-bearing rope assemblies, understanding and controlling the D:d ratio is essential to maintaining strength and extending service life.
What is the D:d Ratio?

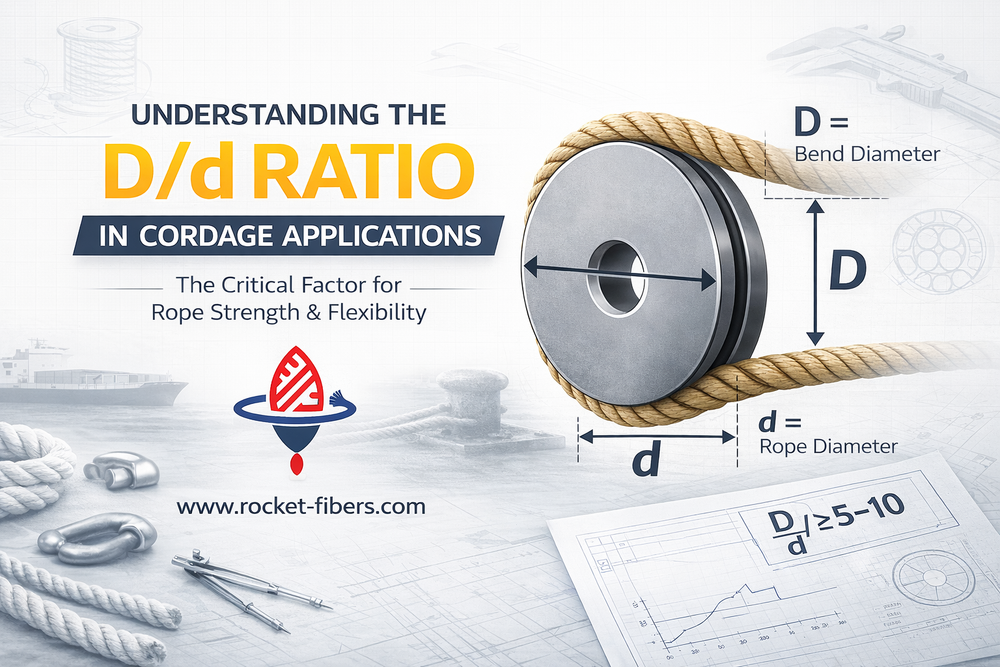

The D:d ratio compares the diameter of the pulley, sheave, or pin (D) to the diameter of the rope or cord (d). In simple terms, it shows how tightly a rope or cord is bent around a piece of hardware.
D:d = (Diameter of Pulley/Sheave/Pin) / (Diameter of Rope or Cord)
A higher ratio means the rope or cord experiences a gentler bend, while a lower ratio forces it into a tighter bend radius, increasing internal stress and accelerating wear.
Why the D:d Ratio Matters
When a rope or cord bends around hardware, the outer filaments are stretched while the inner filaments are compressed. This creates internal strain that reduces the effective strength of the structure.
- Strength Loss: Tight bend radii reduce tensile capacity
- Fatigue Damage: Repeated bending accelerates fiber breakdown
- Abrasion: Increased contact pressure leads to surface wear
- Premature Failure: Poor D:d ratios significantly shorten service life
In demanding environments such as aerospace, defense systems, and industrial machinery, improper D:d ratios are one of the most common causes of unexpected failure in cordage systems.
Relative Bending Performance by Fiber Type
Different fibers respond differently to bending stress due to their molecular structure, stiffness, and resistance to flex fatigue. If you're comparing materials, refer to our High-Performance Fiber Properties Table.
| Fiber Type | Tolerance to Tight Bends | Performance Notes |
|---|---|---|
| UHMWPE (Dyneema® / Spectra®) | High | Excellent flexibility and industry-leading flex fatigue resistance. Performs well in dynamic bending applications. |
| Vectran™ (LCP) | Moderate to High | High strength with excellent flex fatigue and dimensional stability. Generally more tolerant to repeated bending than para-aramid. |
| Para-Aramid (Kevlar® / Technora®) | Moderate | Very high strength and thermal resistance, but less tolerant to repeated tight-radius bending due to lower flex fatigue resistance. |
| Carbon Fiber | Low | Very stiff and brittle under bending. Not suitable for tight-radius or flex-cycling cordage applications. |
Note: These rankings represent general industry behavior and material characteristics. Actual performance depends heavily on construction, loading conditions, cycling, and system design.
How Construction Impacts Performance
Fiber construction plays a major role in how materials respond to bending and fatigue. Learn more about this in our guide on The Benefits Of Twisting Multifilament Fibers.
- Braided Lines: Provide superior flexibility and distribute stress evenly in dynamic applications
- Twisted Cords: Offer strength and structure but can concentrate stress under tight bending
- Ropes: Larger constructions follow the same bending principles, but internal geometry plays a major role in performance
How Coatings Improve Performance
In addition to fiber selection and construction, coatings play a critical role in improving real-world performance. In many applications, coatings are the difference between acceptable performance and long-term durability.
As cordage products move over pulleys, guides, and contact surfaces, the outer filaments experience the highest levels of stress and wear. Coatings help protect these filaments, stabilize the structure, and reduce damage caused by repeated bending and friction.
- Abrasion Resistance: Reduces surface wear
- Filament Protection: Prevents fuzzing and snagging
- Improved Fatigue Life: Reduces internal friction during cycling
When combined with proper D:d ratio design, coatings provide an additional layer of performance optimization.
Final Thoughts
The D:d ratio is one of the most important — and most overlooked — parameters in cordage design. By understanding how bend radius affects performance, engineers can make smarter material selections and significantly improve system reliability.
If you're designing a system and need help selecting the right fiber, construction, or coating, Rocket-Fibers can help optimize your solution for real-world performance.
